Portable Container Living Quarters Modular Construction Accommodation

Ask Lasest Price
Brand Name :	KHOME
Model Number :	KHCC
Certification :	CE, ISO
Price :	$2050-$2100 per unit
Payment Terms :	T/T, L/C, Western Union
Supply Ability :	420 unit in one month
Delivery Time :	Depend on quantity needs

Add to Cart

Product Details
Company Profile

Portable Container Living Quarters Modular Construction Accommodation

Portable Container Living Quarters Modular Construction Accommodation

I. Introduction

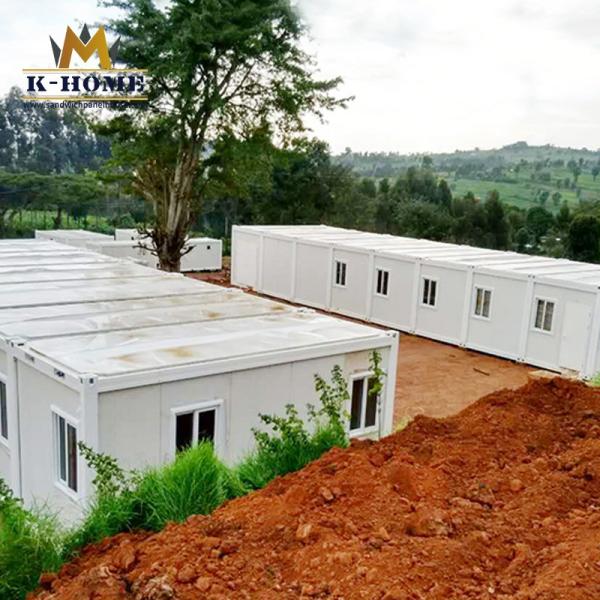

The portable container living quarters could provide a comfortable space for people to rest and relax when employees are working far from home.

We Henan Khome Steel Structure Co., Ltd could provide prefabricated house solutions from different applications. And they are widely used as living quarters for modular construction accommodation.

These container-based modular housing solutions especially very suitable for extreme conditions like the desert. Because it is fast assembly and very convenient to set, no need to make a special foundation.

The electrical and drainage system, it also well designed and easy to implement.

II. Design introduction

III. Product specification

Part 1: Roof System (roof plate + roof purlin + roof insulation + ceiling)
I	Roof Plate	Roof tile is 0.5 mm thick steel sheet; Pre-coated and color coated;
		Strong and corrosion resistance.
ii	Roof Purlin	1pc 40x80mm Galvanized Square tube + 2pcs 40x60mm Galvanized Square tube + 5pcs 40x80mm Galvanized Square tube;
		Firm, strong corrosion resistance and has a long service life.
Part 2: Steel Frame (Corner post + column + beam + bolt)
I	Corner Connection Part	Material: 4 mm Thickness Shaped Steel, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 160 mm (Bottom) &160* 160* 180 mm (Top);
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.
ii	Column	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size: 160* 160* 2480mm;
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.
iii	Top and Floor Long Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 3680* 60* 160 mm;
		Size 2: 5680* 60* 160 mm;
		Feather: Safe, strong, and corrosion resistance. The color is glossy and can last for a long time.
iv	Top & Floor Short Beam	Material: 2.3mm Thickness galvanized steel structure, surface spray treated by machine after repeatedly polished;
		Size 1: 2680* 60* 160 mm;
		Feather: Safe, strong, and corrosion resistance.
		The color is glossy and can last for a long time.

IV. Delivery and shipment
